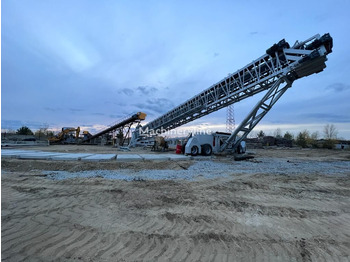

New Cone crusher POLYGONMACH 1000x3000mm radial conveyor

1000x30000mm radial telescobic conveyor

General Tech Spec of 100 Feet Radial Belt Conveyor

Drive System Direct Accoupled

Drive Drum 323* 12 mm rubber coated

Reducer Yılmaz KR Series-VOLT 50hz-380V

Bed Type SNH Series Felt Cast Iron Bed with Over Lubrication

Platform Single Sided Walkway on main belt

Band Tape TS 542 Norm 4 Layers, 4/2,10mm Width

Direction Roll 12 units

Nominal Capacity 800-1000 tph

Drive 2.5” Standard Kingpin

Paint Acrylic

Raised stockpile height 15 meters

Lowered stockpile height 4,3 meters

Belt widths: 1000mmx30000 meters

Radial Drive Eletrical Motor/Gearbox connected to wheels by chain

Radial Move 5 degrees

Belt Rear Mounted on static pivot

Stockpile capacity at 270 degrees15m height 140900 metric tons

Drum 323mm dia, anti material sticking

Main Belt 2x22 kw Motor Gearbox

S

Radial Tires 8 pcs- 315*65*22,5 Chained to Motors

Radial Drives 2 pcs 3 kw Motor Gearbox

Total Power 95 kw

Transport Weight 35 tons

Transport Dimensions 4400x22300x3500mm

Control Full Automatic remote controlled

Automation component Siemens

Radial Tyres Hydraulic Swing for erection

Erection Hydraulic Jacks for elevation

Scraper Available at main belt and receiving hopper

Cleaning Both belts have cleaning scraper under drive drum

Receiving Chute included

Discharge Chute to stinger belt Included

Impact rolls Included at receiving chute section

Control panel LCD screen and piano panel for back-up

With Polypole automatic piling software and Siemens PLS option

Fast delivery, high,quality, economical
