New Farm tipping trailer/ Dumper Techmont Anhänger / Trailer / Remorque / Rimorchio / Прицеп одноосный / Przyczepa jednoosiowa T-151/1 3,5 t

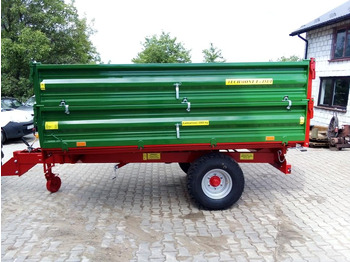

Techmont Trailer T-151/1

Load capacity: 3500 kg

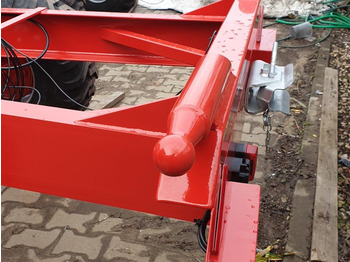

In this standard version, it is well-fitted. Trilateral tipping of the load platform. A ball-pivoting, stable tipping system, well-proven, durable profiled load-bearing frames, and high-quality, reliable, and durable driving axles distinguish our Company's product among other products on the market. Profiled walls with industrial-level strength values will guarantee a long service life of a trailer. Standard equipment includes a window with a bolt in the rear wall. You can choose any color available from the RAL palet.

Technical characteristics:

Load capacity 3500 kg

Tare weight 1610 kg

Cargo capacity 6,8 m3

Length of the load platform (external) 3450 mm

Length of the load platform (internal) 3330 mm

Width of the load platform (external) 2050 mm

Width of the load platform (internal) 1930 mm

Height of the load platform walls 500+500 mm

Dimensions (length/width/height) 4850/2050/1980 mm

Load surface lift 990 mm

Wheel track 1500 mm

Tire size 11,5/ 80-15,3

Pneumatic brakes - pneumatic and hydraulic

Maximum speed 40 (km/h)

Tipping angle of the load platform - back/sideways is 50º

Type of cylinder (number of parts/strokes) 4/1300 (chrome) (pc/mm)

Oil demand/pressure 8/16 (l/MPa)

sheet metal - sideboard 2.0 mm

Sheet metal - floor 3 mm

Main lower frame channel shape 160 mm

Accessories to lower frame channel shape 120 mm

Accessories to lower frame sheet metal 6 mm and 4 mm

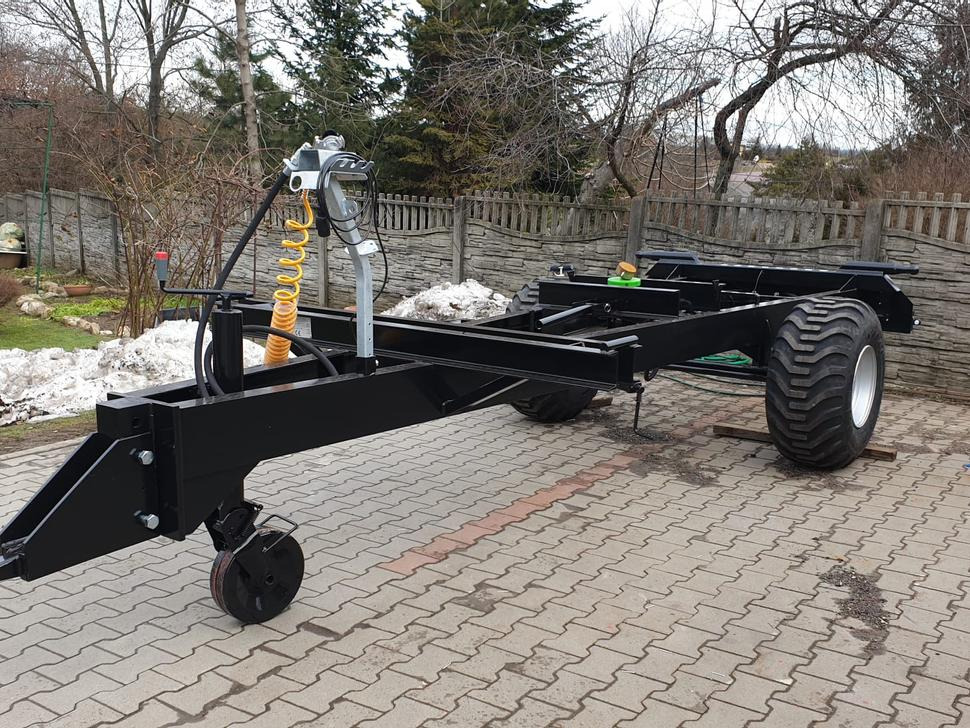

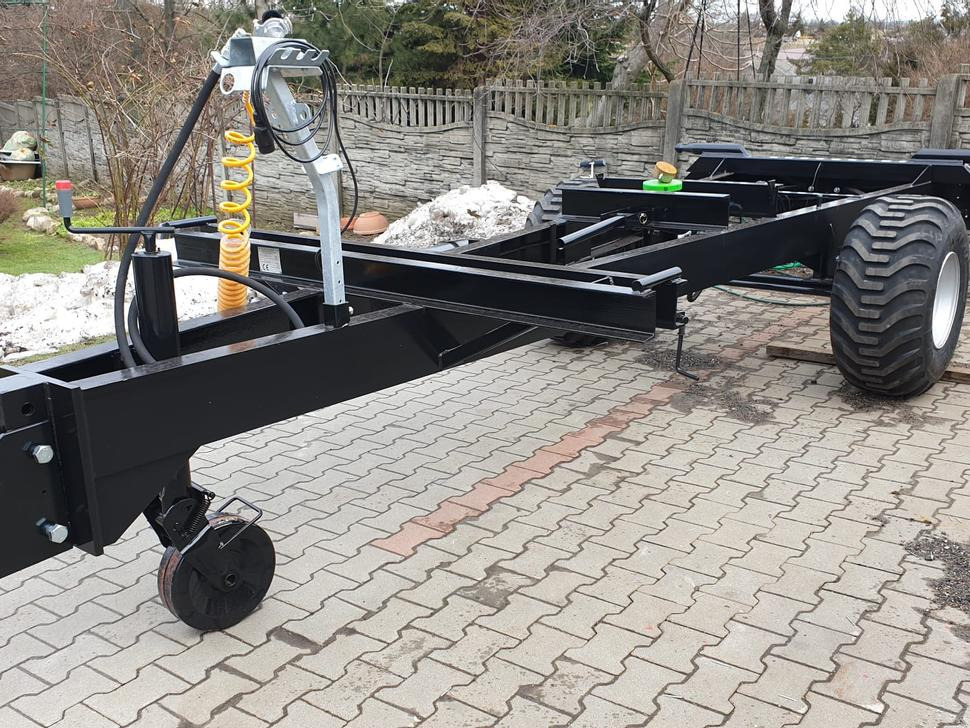

Upper frame thick-walled closed sections

Front catch pawl adjustable, four ranges

Standard equipment for trailers T-151/1 with approval:

Sideboards with 2 x 50 cm extensions

Wedges mounted on the front sideboard

Check valves to control the tipping of the load platform (securing)

Securing of the load platform [a steel cord with handles)

Hand crank-and-screw brake

One-line brake system

Front catch pawl - adjustable, four ranges

Rear catch pawl

A system of sideboard tensioning cables with a release bolt

Accessory equipment for single-axle trailers:

- additional row of 500 mm sideboards

- spare wheel

- central board locking system

tires:

- 400/60-15.5 set (applies to T-151/1 trailer)

- 500/50-17 set (applies to T-151/2 trailer)

- additional pneumatic-hydraulic installation for towing a second trailer

- tarpaulin with fastening frame

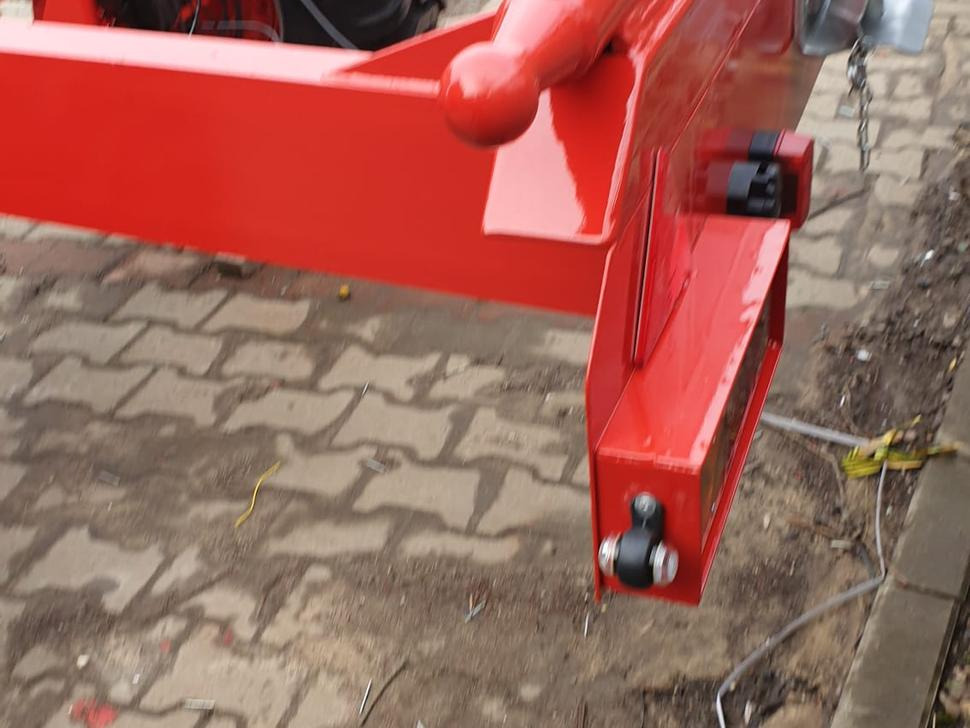

- rear hitch

- working platform on the front side

- hydraulic foot

- 160 mm frame (applies to T-151/1 trailer) (standard trailer on 140 mm frame)

- 200 mm frame (applies to T-151/2 trailer) (standard trailer on 160 mm frame)

- floor panel 4 mm
